How to use the image tag in ComboStrap

About

image is a inline component that permits to show raster or svg images from your media library in your pages.

Features

All images:

are lazy loaded by default to enhance performance
are automatically reduced in size and responsive
- for svg images, we set extra responsive properties.
- for raster images, a small screen will receive a small image while a big screen will receive the biggest image. For more information, see Raster - Automatic Resizing
support scaling on width, height or both
are cached permanently by the server and the browser until the physical file has changed.

Supported Image Type

ComboStrap supports:

raster image (jpg, png, …)
and svg image

Syntax

ComboStrap uses:

the same syntax than Dokuwiki
extended with the possibility to define a ratio
extended with the styling attributes

{{[ ]path?WxH&ratio=w:h&nolink&att=value[ ]}}

where:

path is:
- for an internal image: the internal path of the dokuwiki
- for an external image: the URL.
W is the width (Optional, 0 if you want to set only the height)
H is the height (Optional)
ratio is the image ratio (21:9, 16:9, 4:3, 1:1 or any other custom ratio).
[ ] are optional spaces that indicates the alignement of the image (left, center, or right float)
nolink will not add a link to the image itself.
lazy=(none|html|lozad) controls the lazy method
att=value is one or more styling attributes

Example

Resize to a given width

To resize to a given width, add a number.

Example of an image resized to 400px

{{:docs:block:stock_image_surfer_in_the_see.png?400|}}

Raster images are automatically resized below the screen size. For more information, see the Raster - Automatic Resizing feature

Resize to a given height

To resize to a given height, set a width to 0 followed by the height.

Example of an image resized to 250px height

{{:docs:block:stock_image_surfer_in_the_see.png?0x250|}}

Cropping

cropping can be defined by setting the following properties:

a width and an height
a ratio and a width
a ratio and a height
a ratio

cropping works on:

svg (icon included)
and raster image

First, the image is scaled down by height and is then cropped on the width towards the center.

Example:

raster image cropped to 200x200px with the definition of a 200 width and 200 height

{{:docs:block:stock_image_surfer_in_the_see.png?200x200|}}

raster image cropped to 200x200px with the definition of the ratio 1:1 and a 200 width

{{:docs:block:stock_image_surfer_in_the_see.png?200&ratio=1:1|}}

raster image cropped to 4:3 with the definition of the ratio at the natural width

{{:docs:block:stock_image_surfer_in_the_see.png?ratio=4:3|}}

svg image cropped to 16:9 with 200 height We have added an height because svg expands to the available space and will take the whole page width, while a raster image expands only to its intrinsic width

{{:undraw_content_creator.svg?0x200&ratio=16:9|}}

Position

To position the image to the left, let no space, this is the default
To position the image to the center with a center block, let a space at the left and at the right
To position the image to the right with a right float, let a space at the left

Example: position the image to the right with:

a width of 300
a background-color of white
and a padding of 3 (p-3) with spacing

{{ :docs:block:stock_image_surfer_in_the_see.png?300&spacing=p-3&background-color=white|}}

If you want more control on position, we advise you to use the grid and its cells.

Styling Attributes

You can style even further your image with styling element:

with a shadow elevation through styling.
with a hover float effect

For instance, to elevate this photography with a surfer, you could use this syntax.

{{ :docs:block:stock_image_surfer_in_the_see.png?400&onHover=float&shadow=lg |}}

Background

You can also use the image as background.

<slide color="steelblue" align="text-center" >
   <background opacity="0.3">{{:docs:block:stock_image_surfer_in_the_see.png|}}</background>
    <heading d2>A background image</heading>
    <text lead font-size="h3">A background image will emphasise a short message.</text>
</slide>

A background image

A background image will emphasise a short message.

Gallery

With the carroussel component, you can create an image gallery

The cards:

<carrousel>
{{ :woman-yoga-sunset.jpg?0x600&ratio=16:9 |}}

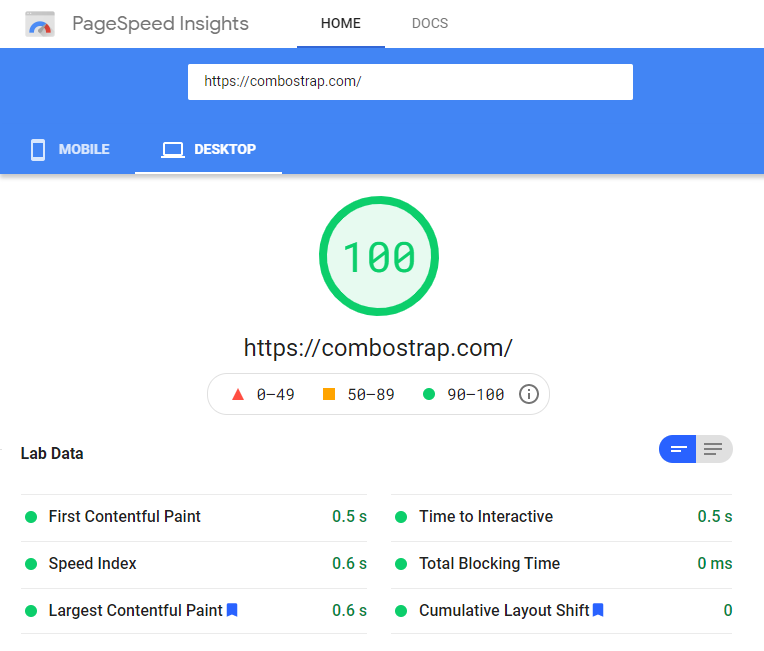

{{ :page_speed_performance.png?0x600&ratio=16:9 |}}
{{ :undraw_content_creator.svg?0x600&ratio=16:9 |}}
</carrousel>

The output:

Support

Configuration

imageEnable

This configuration permits to disable completely this component. It will also disable:

the raster image
and svg component

imageDefaultLinking

This configuration permits setting the link type to the image.

Value	Behavior
default	The default value is direct
direct	Direct link to the image in a lightbox
detail	Link to a web page with image details
linkonly	Only the link is displayed, not the image
nolink	No link is added around the image

Metadata Image

You can also add image in the metadata in order to add/set illustrations for social cards or templates.
